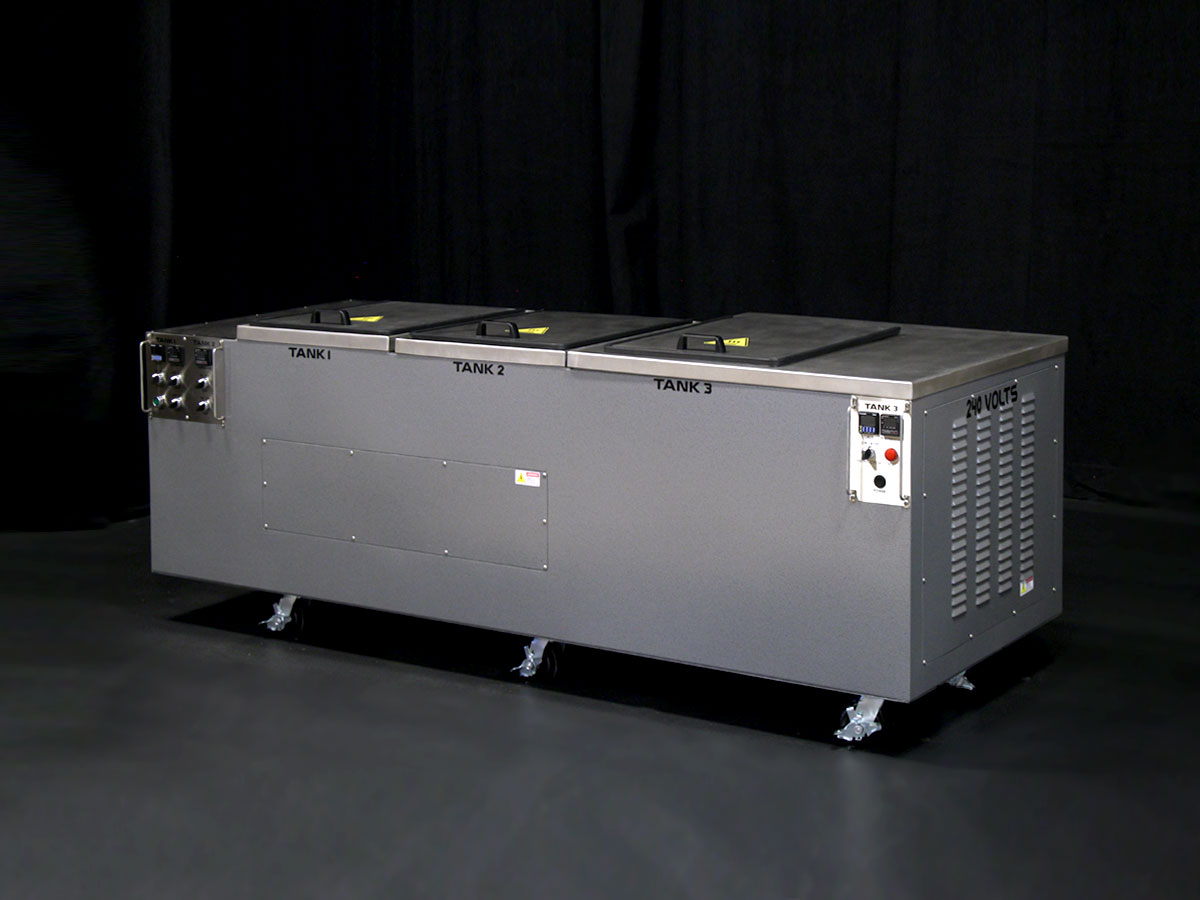

Viking DX3 Ultrasonic Cleaner

Does your application require an ultrasonic wash, a hot water rinse and a hot air dry? Then the Pro Series line of DX3’s gives you the versatility to rinse your cleaned parts in a non-ultrasonic or ultrasonic optional rinse bath before placing the cleaned parts in hot-air, updraft recirculating dryer. The secondary rinse bath provides a higher level of contaminant and soap residue rinsing than single stage batch processing. The third stage dryer ensures your parts are ready to move to the next stage of manufacturing or out to your client. The DX3 models can be built in our Pro, Pro Plus, Super Pro, Power Pro 6000 capacity tanks or custom sized to meet your exact needs.


Request a Quote for the Viking DX3 Ultrasonic Cleaner

Unique Features

  • Portable
  • Heated Wash & Rinse tanks
  • Filtration system – Wash & Rinse tanks
  • 4” weir – Wash & Rinse tanks
  • Digital controls
  • Ultrasonic Power: 1000 Watts Peak Wash Tank
  • Rinse tank can be upgraded to ultrasonics
  • Hot air recirculating dryer stage
  • 1 phase/ 208-220 VAC/ 30 Amp

Tank Dimensions

  • 18” length x 18” width x 14” working depth – each tank 20” overall depth – each tank

Overall Dimensions

  • 89” length x 26” width x 36” height

Gallons

  • 25 Gallon Multi-stage gallons

Model

  • OMG-5022DX3

Benefits

  • Maximum space utilization
  • Ultrasonic washer, heated rinse station and recirculating hot air dryer in a single unit
  • Quick and thorough drying to save time and money
  • Corrosion resistance and extended life span
  • Single point for utility connections
  • Quick and easy installation
