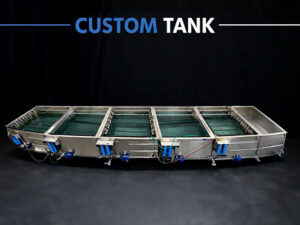

Custom Tanks

Custom Tanks Designed Just For You

If one of our fifty-seven standard industrial ultrasonic cleaning systems doesn’t meet your exact cleaning process needs, we build custom ultrasonic cleaning tanks to your exact specifications. Omegasonics understands your changing cleaning needs and can adjust our standard designs with a flexible approval process. See how we can improve your unique process quality needs.

omega product

Mack Truck Volvo

Unique Features

  • Portable
  • Dual tank design
  • Dual stage filtration on each stage
  • Overflow weir on the main wash tank
  • 3 phase, 208-240 Vac, 40 Amp

Tank Dimensions

  • 25 gallons
  • 18” Length x 18” Width x 20” Depth, 14” Working Depth

Overall Dimensions

  • 47" Length x 2" Width x 34" Height

Model

  • OMG-5022-2KWCSS
omega product

Craig Surgical

Unique Features

  • Portable
  • Dual stage aqueous cleaner
  • 2000 Watts peak ultrasound
  • 40 kHz
  • Dual stage filtration
  • 1 phase, 120 Vac, 15 Amp Dual plug

Tank Dimensions

  • 33 Gallons - each tank gallons
  • 18" Length x 24" Width x 14" Depth

Overall Dimensions

  • 64" Length x 31" Width x 34" Depth

Model

  • OMG-5028X2-C120V
omega product

Ruger Firearms

Unique Features

  • Bench top design
  • Remotely mounted ultrasonic generator
  • Built-in adjustable heat
  • 2000 Watts peak ultrasound
  • Dual cartridge filtration
  • Overflow weir to trap floating oils
  • 1 Phase, 120 Vac, 15 Amp dual plug

Tank Dimensions

  • 39 Gallons gallons
  • 38" length x 14" width x 17" depth each tank

Overall Dimensions

  • 53" length x 18" width x 21" height

Model

  • OMG-1438BT
omega product

Premier Tool Grinding Multi-Stage

Unique Features

  • Portable
  • Dual stage tank design
  • Dual cartridge filtration system - Tanks 1 & 2
  • Recirculating hot air dryer Tank 3
  • Sliding insulated dryer door
  • 3 phase, 208-240 Vac, 40 Amp

Tank Dimensions

  • 33 Gallons - each tank gallons
  • 24" Length x 36" Width x 20" Depth

Overall Dimensions

  • 70" Length x 48" Width x 36" Depth

Model

  • OMG-5028-DX3
omega product

Hexagon Lincoln

Unique Features

  • Stainless steel frame
  • Overhead gantry lift system
  • A frame style basket
  • 2000 Watts ultrasound
  • External power adjust
  • 1 phase, 208-240 VAC, 30 Amp

Tank Dimensions

  • 58 gallons
  • 48" length x 14" width x 20" depth; 12” Working depth

Overall Dimensions

  • 62" length x 18" width x 35" height

Model

  • OMG-4818
omega product

3M

Unique Features

  • Portable
  • 4000 Watts peak ultrasound
  • Dual stage cartridge filtration
  • Overflow weir
  • 1 phase, 208-240 Vac, 30 Amp

Tank Dimensions

  • 68 gallons
  • 75" length x 15" width x 14" working depth

Overall Dimensions

  • 93" length x 19 width x 30" height

Model

  • OMG50751510
omega product

Competitive Engineering

Unique Features

  • Portable
  • Dual tank design
  • Dual stage filtration on each stage
  • Overflow weir on the main wash tank
  • 3 phase, 208-240 Vac, 40 Amp

Tank Dimensions

  • 86 Gallons - each tank gallons
  • 24" length x 36" width x 20" depth each tank

Overall Dimensions

  • 70" length x 48" width x 36" height

Model

  • OMG-5040-X2
omega product

Advanced Ceramic Coating

Unique Features

  • Portable
  • 5000 watts heat
  • Digital temperature controlled heat
  • 1200 cfm blower
  • Ergonomically designed sliding lid
  • 1 phase/ 208-240 VAC/ 30 Amp

Tank Dimensions

  • 86 gallons
  • 35" Length x 24" Width x 20" Depth

Overall Dimensions

  • 64" Length x 35" Width x 36" Depth

Model

  • OMG-5040-PP6KD
omega product

Quality Precision

Unique Features

  • Extra long length
  • Three piece custom hinged lids
  • Portable
  • 3 Way diverter valve to filter main and weir tanks
  • Heated rinse with digital controls

Tank Dimensions

  • 166 Gallons gallons
  • 96" length x 20" width x 20" working depth

Overall Dimensions

  • 106" length x 24 width x 34" height

Model

  • OMG-962024-CRT
omega product

Stratasys Direct

Unique Features

  • 16,000 Watts heat, Portable unit, Insulated tank
  • Digital Temperature controls
  • Hinged lids
  • 3 phase 208-240 Vac 30 Amp

Tank Dimensions

  • 208 Gallons gallons
  • 53" length x 26" width x 35" working depth

Overall Dimensions

  • 60" length x 29" width x 49" height

Model

  • OMG5326HT
omega product

Edwards Lifesciences - Small

Unique Features

  • Stainless steel frame
  • 1000 Watts peak ultrasound - each tank
  • 3000 Watt heat - each tank
  • Keyed switch to activate heat
  • Dual cartridge filtration - each tank
  • Solenoid drain valve - each tank
  • Stack light operator interface
  • 50 Hz facility power
  • 3 phase/ 230 VAC/ 40 Amp

Tank Dimensions

  • 8 Gallons – each tank gallons
  • 10" length x 12" width x 16" depth each tank

Overall Dimensions

  • 57" length x 27" width x 30" height

Model

  • OMG-1210X3
omega product

Edwards Lifesciences - Large

Unique Features

  • Stainless steel frame
  • 1000 Watts peak ultrasound - each tank
  • 5600 Watt heat - each tank
  • Dual cartridge filtration - each tank
  • Solenoid drain valve - each tank
  • Stack light operator interface
  • 50 Hz facility power
  • 3 phase/ 230 VAC/ 50 Amp

Tank Dimensions

  • 21 Gallons – each tank gallons
  • 10" length x 34" width x 14" depth each tank

Overall Dimensions

  • 62" length x 46" width x 30" height

Model

  • OMG-501034X3
omega product

New Mathers Metals (NHK)

Unique Features

  • Air conditioning system for extreme electronics cleaning
  • Portable
  • All stainless steel exterior frame
  • 25 kHz ultrasound - wash & rinse tanks
  • 5000 Watt hot air dryer
  • 3 phase, 208-240 Vac, 40 Amp

Tank Dimensions

  • 25 Gallons - each tank gallons
  • 18" Length x 18" Width x 20" Depth each tank

Overall Dimensions

  • 89" Length x 26" Width x 36" Height

Model

  • OMG-5022DX3-CNHKAC
omega product

Mirus Custom Pro DX3

Unique Features

  • Ultrasonic primary wash
  • Dual output timer controls ultrasound and secondary filtration
  • Heated secondary rinse
  • Dual stage filtration with overflow weir
  • All stainless steel plumbing
  • Hot air dry final stage
  • 304 #4 Stainless steel frame
  • 3 phase/ 208-240 VAC, 30 Amp

Tank Dimensions

  • 25 Gallons – each tank gallons
  • 18" Length x 18" Width x 20" Depth

Overall Dimensions

  • 89" Length x 26" Width x 36" Depth

Model

  • OMG-5028X2-C120V-2
omega product

JAS Services

Unique Features

  • Four stage cleaning system
  • Portable
  • 14” Working depth to top of weir
  • Ultrasonic wash tank
  • Dual heated rinse tanks
  • Insulated hot air dryer
  • Sliding dryer lid
  • 3 phase, 208-240 VAC, 50 Amp

Tank Dimensions

  • 25 Gallons - each tank gallons
  • 18" length x 18" width x 20" depth each tank

Overall Dimensions

  • 122" length x 36" width x 36" height

Model

  • OMG-5022DX4
industrial ultrasonic cleaner

Stark

33 Gallons - each tank

Quick View Detail View
omega product

Stark

Unique Features

  • Portable
  • Multi-stage X3
  • 14” Working depth to top of weir
  • 2000 Watts peak ultrasound in each tank
  • Filtration in each tank
  • Digital controlled heat in each tank
  • 3 phase, 208-240 VAC, 40 Amp

Tank Dimensions

  • 33 Gallons - each tank gallons
  • 18" length x 24" width x 20" depth each tank

Overall Dimensions

  • 83" length x 40" width x 36" height

Model

  • OMG-5028-X3
omega product

Pro Plastics / Mi Profiles X2

Unique Features

  • Exterior stainless steel frame
  • 8” weir for excess water displacement
  • Dual cartridge filtration - each tank
  • 400 lbs weight capacity - each tank
  • Custom A-frame basket
  • 3 phase, 208-240 Vac, 30 Amp

Tank Dimensions

  • 80 Gallons - each tank gallons
  • 24" Length x 24" Width x 24" Depth

Overall Dimensions

  • 72" Length x 39" Width x 40" Depth

Model

  • OMG-2400C
omega product

Shermco

Unique Features

  • Heavy duty 10 gauge tank construction
  • 20,000 Watts heat
  • 48,000 Peak Watts ultrasound
  • Dual frequency design 25/ 40 kHz
  • Side mount transducers
  • Triple cartridge filtration
  • Separate generator cabinet with controls
  • 3 phase/ 480 VAC/ 75 Amp

Tank Dimensions

  • 4,000 gallons
  • 152" Length x 98" Width x 60" Depth

Overall Dimensions

  • 181" Length x 110" Width x 76" Depth

Model

  • OMG-172100
